8-bit Breadboard Computer

This is a from scratch 8-bit computer built on breadboards, following Ben Eater’s design. The remaining work is bus integration and the instruction set, essentially wiring everything together and teaching it to actually run a program. I am about 80% there.

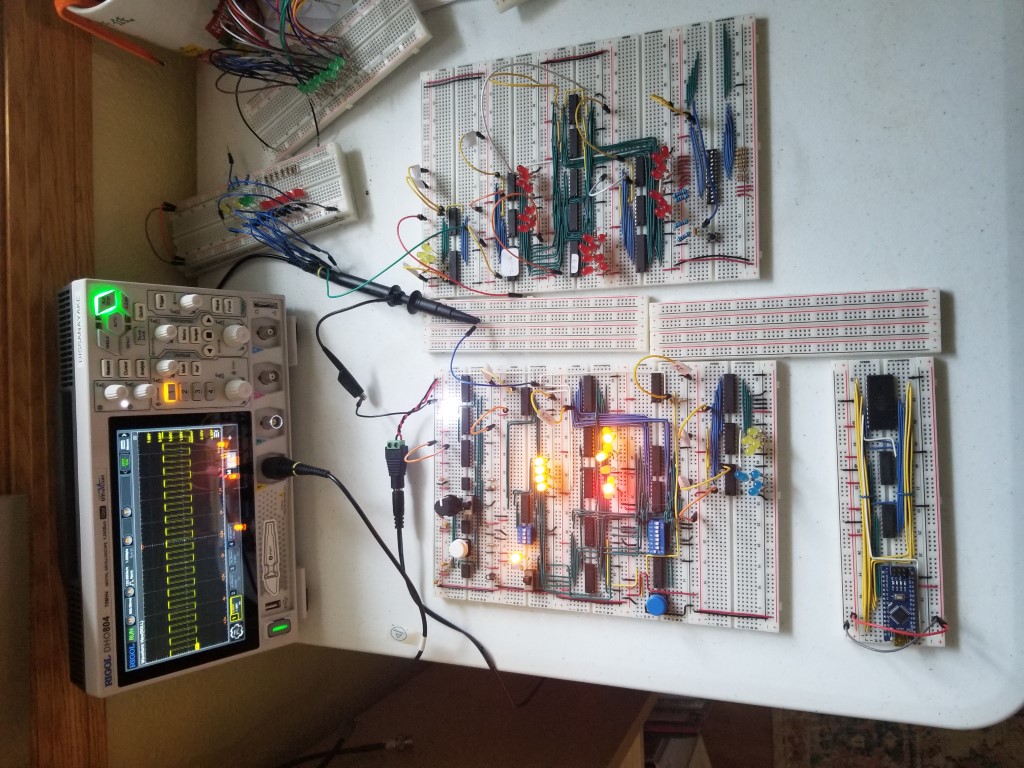

8-bit breadboard computer modules


The following modules are built, tested, and validated independently:

  1. Clock
  2. ALU
  3. Memory registers
  4. RAM
  5. Program counter
  6. Output register
